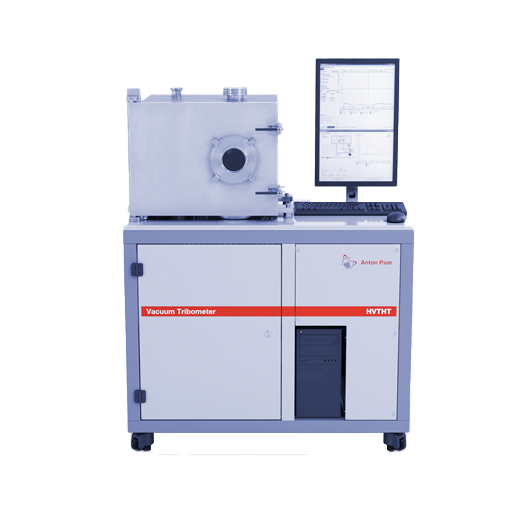

Vacuum Tribometer TRB V / THT V
- Testing compatible with DIN 50324, ASTM G99 and ASTM G133
- Testing in liquids and controlled humidity
- High-temperature model (max. 1000 °C)
- For varied sample sizes and shapes
The vacuum tribometer is used to determine the sliding life of self-lubricating coatings as well as the friction and wear behavior of solid-state materials or hard coatings – with averaging time, contact pressure, velocity and temperature under vacuum conditions.
Anton Paar tribometers have proven their reliability worldwide in over 1,000 laboratories, for studying:
High-vacuum environments, down to 10e -7 mbar
New materials (ceramics, metals, polymers)
Self-lubricating systems
Quality assurance
| Rotation speed | Up to 600 rpm (optional 1500 rpm) |
| Maximum torque | 450 mNm |
| Friction force (LVDT sensor) | up to 10 N (optional 20 N) |
| Maximum disk dimensions | Ø max. 55 mm; Ø min 11mm; Thickness up to 10 mm |
| Maximum normal load | 10 N (optional 60 N) |
For more information visit anton-paar.com
