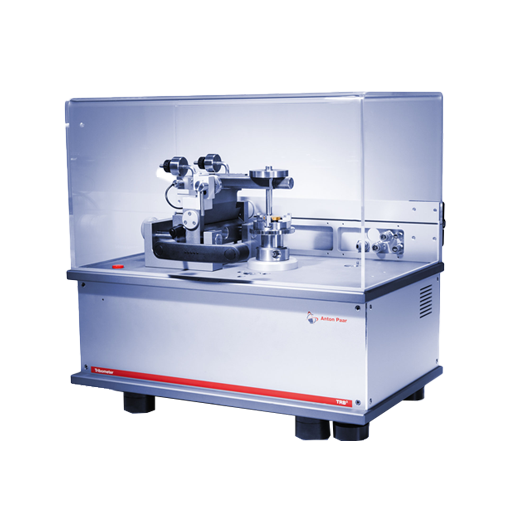

Pin-on-disk tribometer TRB³

The standard for measurement of friction, wear, and lubrication
Wide range of testing parameters, contact geometries, and add-on options
Delivered with the reference sample kit for instrument performance verification
Integrated temperature and humidity sensors

Features

With over 1000 installed bases worldwide over the last 35 years, Anton Paar’s pin-on-disk tribometer is the standard for measurement of friction, wear, and lubrication. Its wide range of testing parameters, contact geometries, and add-on options allows users to conduct tribology testing by simulating all in-service conditions, like different movement modes (linear, reciprocating), contact modes, speed, lubrication, materials, high temperature, humidity, etc. .

TRB³ has established its reputation and proven its reliability in laboratories all over the world for research and quality control of new materials (i.e. ceramics, metals, polymers), lubricants and oil additives, and self-lubricating systems.

Minimize thermal drift with two friction force sensors

Thanks to the unique design of two friction force sensors and a symmetrical elastic measuring arm, the Anton Paar pin-on-disk tribometer TRB³ overcomes thermal drift, which occurs during long periods of testing time and due to environmental temperature fluctuation. Thermal drift is even more detrimental in cases in which the sample is intentionally heated or cooled and where the expected friction force is relatively small. TRB³ simultaneously measures the differential result between the two friction force sensor signals and records hardware-corrected friction data in real-time.

For more information visit anton-paar.com
