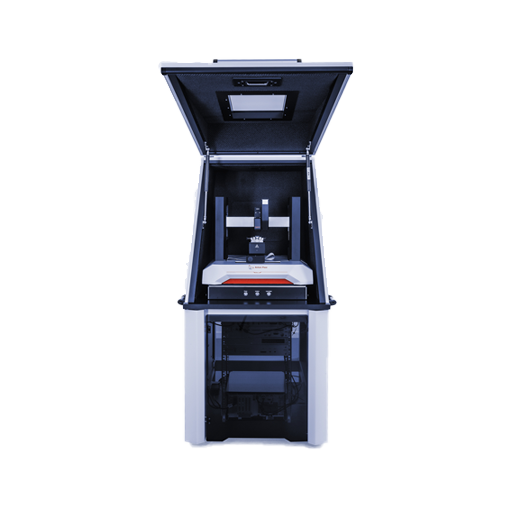

Ultra Nanoindentation Tester: UNHT 700

Highest positioning accuracy down to 100 nm
Designed for demanding, high-performance tasks
Optional Piezo stage for scanning probe microscopy (SPM)
Fast, consistently accurate indentation mapping
Full feature set for advanced research

Features

True results without corrections

UNHT 700 measures what other nanoindentation testers only estimate. Two independent depth and load sensors, combined with Anton Paar’s patented active top surface referencing technology, eliminate thermal drift and frame compliance during measurement. Unlike conventional systems that rely on post-processing corrections, UNHT 700 measures true indentation depth and load in real time, ensuring the displayed data reflects actual material behavior. This delivers reliable performance across an exceptionally wide measurement range – from a few nanometers to 100 μm and from a few μN to 100 mN.

The most stable nanoindentation tester on the market

The critical measuring components of the UNHT 700 head are manufactured from Zerodur, a glass-ceramic material with virtually zero thermal expansion. In combination with unique active top surface referencing technology, this enables negligible thermal drift of down to 10 fm/s without depth correction – making UNHT 700 the only nanoindentation tester suitable for lengthy measurements such as creep tests.
