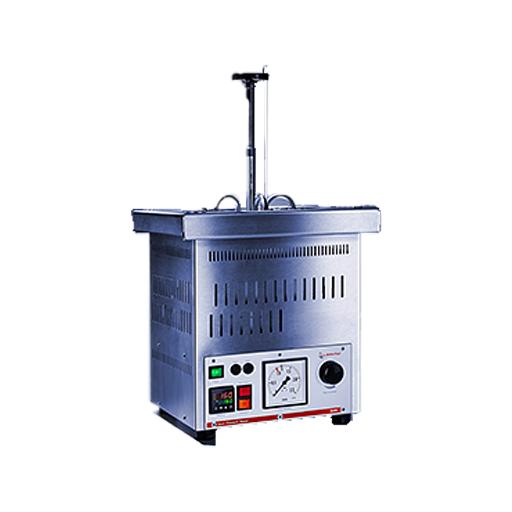

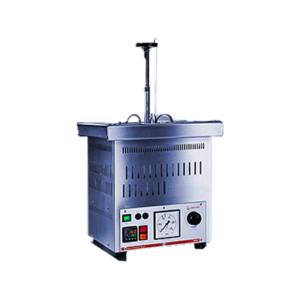

Gum Content Tester: GUM

For tests on the gum content of fuels and other volatile distillates
Safety multi-function head for simultaneous positioning
Small size for safe operation in fume hood
Over-temperature protection cut-off

Features

Gum content is the residue of aircraft fuels, motor gasoline and other volatile distillates which cannot be evaporated.
Fuel samples of 50 mL are evaporated under controlled conditions of temperature and the flow of air or steam.

Specifications

Application range	ambient to 246 °C (air operated) ambient to 260 °C (air and steam operated)
Test places	5 (simultaneous)
Pressurized air supply	2 bar to 4 bar, cleaned and oil-free; 180 – 300 L/min
Steam supply	Inlet temperature: approx. 140 °C Pressure: approx. 3 bar to 4 bar Flow rate: 8 kg/h (water steam)
Power supply	230 V, 50 Hz/60 Hz, 2000 W (air operated) 115 V, 50 Hz/60 Hz, 1750 W (air operated) 230 V, 50 Hz/60 Hz, 3100 W (air and steam operated)
Dimensions	400 mm x 400 mm x 720 mm (W x D x H)
Weight	44 kg
